The profitable deorbit, descent, and touchdown of spacecraft on the Moon requires exact management and monitoring of car dynamics. Anomaly detection gives a singular utility for figuring out necessary states that may characterize automobile behaviors of curiosity. By producing distinctive automobile conduct factors, crucial spacecraft system states will be recognized to be extra appropriately addressed and doubtlessly higher understood. These recognized states will be invaluable for efforts akin to system failure mitigation, engineering design enhancements, and mission planning. At present, area missions have grow to be extra frequent and sophisticated, and the amount of telemetry knowledge generated has grown exponentially. With this development, strategies of analyzing this knowledge for anomalies must successfully scale and with out risking lacking refined, however necessary deviations in spacecraft conduct. Thankfully, AWS makes use of highly effective AI/ML functions inside Amazon SageMaker AI that may deal with these wants.
On this put up, we show how you can use SageMaker AI to use the Random Lower Forest (RCF) algorithm to detect anomalies in spacecraft place, velocity, and quaternion orientation knowledge from NASA and Blue Origin’s demonstration of lunar Deorbit, Descent, and Touchdown Sensors (BODDL-TP). The introduced evaluation focuses on detecting anomalies in spacecraft dynamics knowledge, together with positions, velocities, and quaternion orientations.
Answer overview
This resolution gives an efficient strategy to anomaly detection in spacecraft knowledge. We start with knowledge preprocessing and cleansing to provide high quality enter for our evaluation. Utilizing SageMaker AI, we prepare an RCF mannequin particularly for detecting anomalies in advanced spacecraft dynamics knowledge. To deal with the substantial quantity of telemetry knowledge effectively, we implement batch processing for anomaly detection throughout massive datasets.
After the mannequin is skilled and anomalies are detected, this resolution produces sturdy visualization capabilities, presenting outcomes with highlighted anomalies for clear interpretation of the findings. We use Amazon Easy Storage Service (Amazon S3) for seamless knowledge storage and retrieval, together with each uncooked knowledge and generated plots. All through the implementation, we preserve cautious value administration of SageMaker AI cases by deleting assets after they’re used to realize environment friendly utilization whereas sustaining efficiency.
This mix of options creates a scalable, environment friendly pipeline for processing and analyzing spacecraft dynamics knowledge, making it significantly appropriate for area mission functions the place reliability and precision are essential.
Key ideas
On this part, we focus on some key ideas of spacecraft dynamics and machine studying (ML) on this resolution.
Place and velocity in spacecraft dynamics
Place and velocity vectors in our NASA Blue Origin DDL knowledge are represented within the Earth-Centered Earth-Fastened (ECEF) coordinate system. This reference body rotates with the Earth, making it excellent for monitoring spacecraft relative to touchdown websites on the lunar floor. The place vector [x, y, z] in ECEF pinpoints the spacecraft’s location in three-dimensional area. Its origin is at Earth’s heart, with the X-axis intersecting the prime meridian on the equator, the Y-axis 90 levels east within the equatorial aircraft, and the Z-axis aligned with Earth’s rotational axis. Measured in meters, this place knowledge can reveal essential details about orbital descent trajectories, touchdown strategy paths, terminal descent profiles, and closing landing positioning. Complementing place knowledge, the rate vector [vx, vy, vz] represents the spacecraft’s price of place change in every route. Measured in meters per second, this velocity knowledge is important for monitoring descent charges, sustaining secure strategy speeds, controlling deceleration profiles, and verifying touchdown constraints. Our RCF algorithm scrutinizes each place and velocity knowledge for anomalies. In place knowledge, it appears for anomalies that may be attributable to sudden trajectory deviations, unrealistic place jumps, sensor glitches, or knowledge recording errors. For velocity, its detected anomalies may be because of sudden velocity adjustments, uncommon acceleration patterns, potential thruster misfires, or navigation system points. The fusion of place and velocity knowledge gives a complete view of the spacecraft’s translational movement. When mixed with quaternion knowledge describing rotational state, we get hold of an entire image of the spacecraft’s dynamic state throughout crucial mission phases. These metrics play important roles in mission planning, real-time monitoring, post-flight evaluation, security verification, C2 (command and management), and general system efficiency analysis. Through the use of these wealthy datasets and superior anomaly detection methods, we improve our capability to realize mission success and spacecraft security all through the dynamic phases of lunar deorbit, descent, and touchdown.
Quaternions in spacecraft dynamics
Quaternions play a vital function in spacecraft angle (orientation) illustration. Though Euler angles (roll, pitch, and yaw) are extra intuitive, they will undergo from gimbal lock—a lack of one diploma of freedom in sure orientations. Quaternions remedy this downside by utilizing a four-parameter illustration that avoids such singularities. This illustration consists of 1 scalar element (q0) and three vector parts (q1, q2, q3), offering a sturdy mathematical framework for describing spacecraft orientation. In our NASA Blue Origin DDL knowledge, quaternions serve an important function: they characterize the rotation from the spacecraft’s body-fixed coordinate system (CON) to the ECEF body. This transformation is key to a number of crucial features of spacecraft operation, together with sustaining exact angle management throughout descent, preserving right thrust vector orientation, facilitating correct sensor measurements, and computing touchdown trajectories. For dependable anomaly detection, quaternion values should fulfill two important mathematical properties. First, they need to preserve unit magnitude, that means the sum of their squared parts (q0² + q1² + q2² + q3² = 1) equals one. Second, they need to show continuity, avoiding sudden jumps that will point out bodily not possible rotations. These properties assist affirm the validity of our orientation measurements and the effectiveness of our anomaly detection system. When our RCF algorithm identifies anomalies in quaternion knowledge, these might sign varied points requiring consideration. Such anomalies may point out sensor malfunctions, angle management system points, knowledge transmission errors, or precise issues with spacecraft orientation. By rigorously monitoring these quaternion parts alongside place and velocity knowledge, we develop a complete understanding of the spacecraft’s dynamic state in the course of the crucial phases of deorbit, descent, and touchdown.
The Random Lower Forest algorithm
Random Lower Forest is an unsupervised algorithm for detecting anomalies in high-dimensional knowledge. The algorithm’s building begins by creating a number of determination timber, every constructed by way of a technique of repeatedly slicing the information area with random hyperplanes. This partitioning continues till every knowledge level is remoted, making a forest of timber that captures the underlying construction of the information. The novelty of RCF lies within the scoring mechanism. Factors situated in sparse areas of the information area that require fewer cuts to isolate rating greater, whereas factors in dense areas that want extra cuts rating decrease. This basic precept permits the algorithm to assign anomaly scores inversely proportional to the variety of cuts wanted to isolate every level. Larger scores, due to this fact, point out potential anomalies, making it simple to determine uncommon patterns within the knowledge.
In our spacecraft dynamics context, we apply RCF to 10-dimensional vectors that mix place (three dimensions), velocity (three dimensions), and quaternion orientation (4 dimensions). Every vector represents a selected second in time in the course of the spacecraft’s mission states. The flight patterns create dense areas on this high-dimensional area, whereas anomalies seem as remoted factors in sparse areas. This knowledge is high-dimensional, multivariate time sequence, and has no labels, which RCF handles pretty effectively whereas sustaining computational effectivity and dealing with sensor noise. For this use case, RCF is ready to detect refined deviations between knowledge factors of spacecraft dynamics whereas dealing with the advanced relationships between place, velocity, and orientation parameters. These options of RCF make it an efficient device for spacecraft dynamics monitoring evaluation and anomaly detection.
Answer structure
The answer structure implements anomaly detection for NASA-Blue Origin Lunar DDL knowledge utilizing the RCF algorithm, as illustrated within the following diagram.
Our resolution’s knowledge stream begins with public DDL (Deorbit, Descent, and Touchdown) knowledge securely saved in an S3 bucket. This knowledge is then accessed by way of a SageMaker AI area utilizing JupyterLab, offering a robust and versatile surroundings for knowledge scientists and engineers. Inside JupyterLab, we use a customized pocket book to course of the uncooked knowledge and implement our anomaly detection algorithms.
The core of our resolution lies within the processing pipeline. It begins within the JupyterLab pocket book, the place we prepare an RCF mannequin utilizing SageMaker AI. After it’s skilled, this mannequin is deployed to a SageMaker AI endpoint, making a scalable and responsive anomaly detection service. We then feed our spacecraft dynamics knowledge by way of this mannequin to determine potential anomalies. The pipeline concludes by producing detailed visualizations of those anomalies, offering clear and actionable insights.
For output, our system saves each the detected anomaly knowledge and the generated plots again to Amazon S3. This makes certain the outcomes are securely saved and accessible for additional evaluation or reporting. Moreover, we protect all coaching knowledge and mannequin outputs in Amazon S3, enabling reproducibility and facilitating iterative enhancements to our anomaly detection course of. All through these operations, we preserve sturdy safety measures, utilizing Amazon Digital Non-public Cloud (Amazon VPC) to implement knowledge privateness and integrity at each step of the method.
Stipulations
Earlier than standing up the challenge, you could arrange the mandatory instruments and entry rights:
- The AWS surroundings ought to embody an lively AWS account with acceptable permissions for operating ML workloads, together with the AWS Command Line Interface (AWS CLI) for command line operations put in
- Entry to SageMaker AI is important for the ML implementation
- On the event facet, Python 3.7 or later must be put in, together with a number of key Python packages:
Arrange the answer
The setup course of consists of accessing the SageMaker AI surroundings, the place all the information evaluation and mannequin coaching is executed.
- On the SageMaker AI console, open the SageMaker area particulars web page.
- Open JupyterLab, then create a brand new Python pocket book occasion for this challenge.
- When the surroundings is prepared, open a terminal in SageMaker AI JupyterLab to clone the challenge repository utilizing the next instructions:
- Set up the required Python libraries:
pip set up -r necessities.txt
This course of will arrange the mandatory dependencies for operating anomaly detection evaluation on the spacecraft knowledge.
Execute anomaly detection
Replace the bucket_name and file_name variables within the script along with your S3 bucket and knowledge file names.
Run the script in JupyterLab as a Jupyter pocket book or run as a Python script: python Lunar_DDL_AD.py
Upon execution, the pocket book or script performs a sequence of automated duties to research the spacecraft knowledge. It begins by loading and preprocessing the uncooked knowledge, ensuring it’s within the right format for evaluation. Subsequent, it trains and deploys an RCF mannequin utilizing SageMaker AI, establishing the inspiration for our anomaly detection system. When the mannequin is operational, it processes the spacecraft dynamics knowledge to determine potential anomalies in place, velocity, and quaternion measurements. Lastly, the script generates detailed visualizations of those findings and robotically uploads each the plots and evaluation outcomes to Amazon S3 for safe storage and simple entry.
Code construction
The Python implementation facilities round an anomaly detection pipeline, structured in the primary script. At its core is the AnomalyDetector class, which orchestrates your entire workflow from knowledge ingestion to visualization. This class incorporates a number of strategies that collectively course of spacecraft telemetry knowledge and determine anomalies.
The load_and_prepare_data methodology handles the preliminary knowledge ingestion and preprocessing, ensuring spacecraft measurements are correctly formatted for evaluation. After the information is ready, train_and_deploy_model trains the RCF mannequin and deploys it as a SageMaker endpoint. The predict_anomalies methodology then makes use of this skilled mannequin to determine uncommon patterns within the spacecraft’s place, velocity, and quaternion knowledge.
For visualization and storage, the plot_results methodology creates detailed graphs highlighting detected anomalies, and upload_plot_to_s3 makes certain these visualizations are securely saved in Amazon S3 for future reference and centralized entry.
Collectively, these parts create a complete pipeline for processing spacecraft telemetry knowledge and figuring out potential anomalies that may warrant additional investigation.
Configuration
Modify the next parameters within the script as wanted:
threshold_percentilefor the brink for anomaly classification- RCF hyperparameters in
train_and_deploy_model:feature_dim: Variety of enter optionsnum_samples_per_tree: Random knowledge factors per treenum_trees: Variety of timber within the algorithmic forest
batch_sizeinpredict_anomaliesfor big datasets
For RCF functions, the hyperparameters and threshold configuration considerably affect anomaly detections. We use the next configuration values for this instance:
threshold_percentile=0.9- RCF hyperparameters in
train_and_deploy_model():feature_dim=10num_samples_per_tree=512num_trees=100
batch_size=1000inpredict_anomalies()
SageMaker AI occasion sort measurement for coaching and inference can have an effect on anomaly outcomes, processing time, and value. On this instance, we used an ml.m5.4xlarge occasion for each coaching and inference.
As well as, SageMaker AI will be built-in with varied security measures for safeguarding delicate knowledge and fashions. It’s doable to function in no web or VPC solely modes so SageMaker AI cases stay remoted inside your Amazon VPC. Safe knowledge entry can be achieved by way of AWS PrivateLink, enabling personal connections to Amazon S3 with out web publicity. Additionally, integration with AWS Id and Entry Administration (IAM) gives fine-grained entry management by way of customized consumer profiles, implementing knowledge privateness and adhering to the precept of least privilege, akin to when utilizing delicate spacecraft telemetry knowledge. These are a few of the safety enhancement providers that may be utilized in line with your acceptable use case with SageMaker AI.
Knowledge
The script makes use of public NASA-Blue Origin Demo of Lunar Deorbit, Descent, and Touchdown Sensors (BODDL-TP) knowledge, which you’ll obtain. Be sure that your knowledge is within the right format with columns for timestamps, positions, velocities, and quaternions.
Outcomes
The script generates plots for positions, velocities, and quaternions. The respective knowledge is plotted and the anomalies are plotted as an overlay in purple. The plots are saved to the required S3 bucket. Because of the small scale, the positions plot is troublesome to watch anomalies. Nevertheless, the SageMaker AI RCF algorithm can detect them and are highlighted in purple. Within the following plots, the sharp adjustments in velocities and quaternions correspond with the anomalies proven.

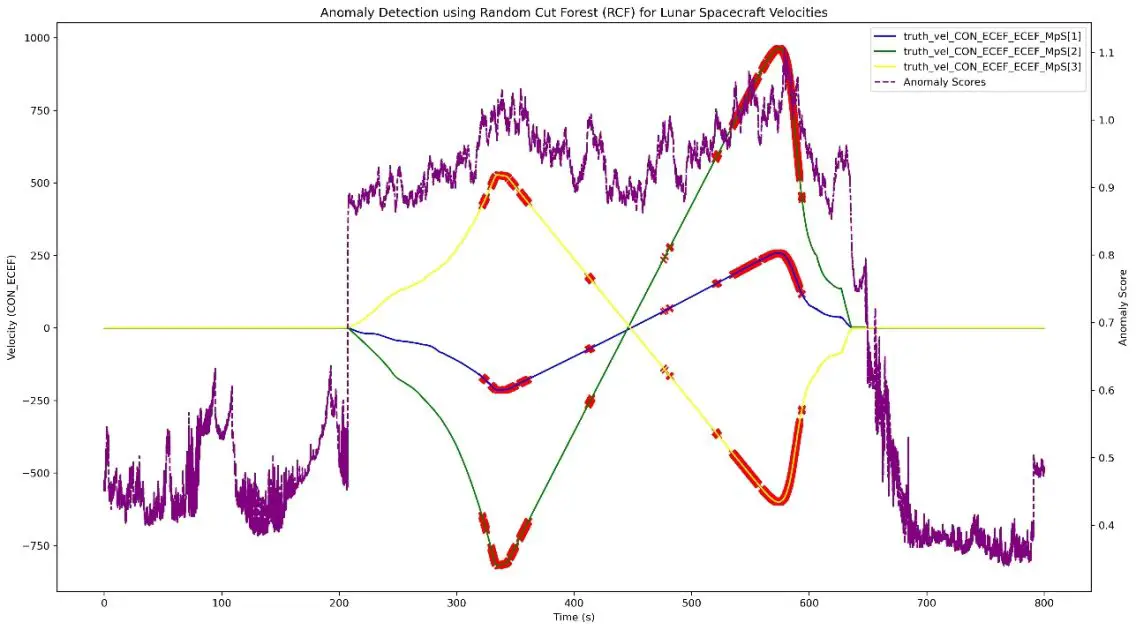

Not like the positions plot, the velocities plot reveals discontinuities, that are detected as anomalies. That is probably because of price adjustments for automobile maneuvers in the course of the deorbit, descent, and touchdown demonstration phases.
Equally to the velocities plot, the quaternions plot reveals sharp adjustments, that are additionally detected as anomalies. That is probably because of rotational accelerations throughout automobile maneuvers of the deorbit, descent, and touchdown demonstration phases.
These anomalies almost definitely characterize the lunar spacecraft automobile dynamics at key maneuver phases of the deorbit, descent, and touchdown demonstration. Momentum wheels, thrusters, and varied different C2 functions may very well be the reason for the noticed abrupt positional, velocity, and quaternion adjustments being detected as anomalous. By having these outcomes, knowledge factors of curiosity are indicated for extra exact and doubtlessly worthwhile evaluation for improved automobile well being and standing consciousness.
Clear up
The supplied script consists of SageMaker AI endpoint deletion after coaching and inference to keep away from any pointless prices. If you happen to’re utilizing JupyterLab and wish to additional keep away from prices, cease the SageMaker AI occasion operating the RCF JupyterLab Python pocket book.
Conclusion
On this put up, we demonstrated how the SageMaker AI RCF algorithm can successfully detect anomalies in spacecraft dynamics knowledge from NASA and Blue Origin’s lunar Deorbit, Descent, and Touchdown demonstration. By detecting anomalies for place, velocity, and quaternion orientation knowledge, we’ve proven how ML can improve area mission evaluation, situational consciousness, and autonomy. The built-in algorithm processes advanced, multi-dimensional spacecraft telemetry knowledge. By environment friendly batch processing, we will analyze large-scale mission knowledge successfully, and our visualization strategy permits fast identification of potential points in spacecraft dynamics. From there, the answer’s scalability reveals the flexibility adapt to deal with various knowledge volumes and mission durations, making it doubtlessly appropriate for a variety of area functions. Though this resolution applies to a lunar mission demonstration, the strategy might have broad functions all through the area trade. You’ll be able to adapt the identical structure for varied area operations, akin to touchdown missions on different celestial our bodies, orbital rendezvous, area station docking, and satellite tv for pc constellations. This integration of AWS providers with aerospace functions creates a sturdy, safe, and scalable platform for area mission analytics, which is turning into more and more worthwhile as we proceed to execute missions within the area surroundings. Trying ahead, this resolution opens many potentialities for enhancement and growth. Actual-time anomaly detection may very well be applied for reside mission knowledge, offering quick insights throughout crucial operations. Additionally, the system may very well be enhanced by incorporating extra spacecraft parameters and sensor knowledge, and automatic alert providers may very well be developed to offer quick notification of detected anomalies. As well as, additional developments may embody extending the evaluation to include predictive ML fashions and creating customized metrics tailor-made to particular mission necessities. These potential developments would proceed to construct upon the inspiration we’ve established, creating much more highly effective instruments for spacecraft mission evaluation.
The code and implementation particulars can be found in our GitHub repository, enabling you to adapt and improve the answer to your particular wants.
For area operations, the mix of cloud computing and ML have robust potential to play an more and more essential function in guaranteeing mission success. This resolution demonstrates simply one in every of many doable functions of AWS providers for enhancing spacecraft mission compute and knowledge evaluation.
To study extra concerning the AWS providers used on this resolution, seek advice from Information to getting arrange with Amazon SageMaker AI, Prepare a Mannequin with Amazon SageMaker, and the JupyterLab consumer information.
